Precision Measurement for Facade Glazing Replacement
Glass facades have become one of the defining architectural features of the 20th and 21st centuries. Their transparency, lightness, and aesthetic appeal made them the hallmark of modern buildings. However, buildings with extensive glazing also come with specific operational challenges. Over time, especially in aggressive environments such as coastal areas or regions with high temperature variations, facade glazing units reach the end of their service life and require replacement.
The first step in replacement of facade glazing units or a complete facade recladding project is an accurate survey of existing structures. Before installation, each panel must be measured with precision to ensure proper fit, durability, and performance. Any error in dimensioning can result in delays, additional costs, or even compromise the safety and functionality of the building envelope.
Why High-Precision Measurement Matters
When an elevational survey or facade surveying is conducted, accuracy is paramount. Traditional methods often fall short when dealing with complex geometries, tall buildings, or irregular deformations that occur over time. This is where the integration of advanced technologies becomes essential.

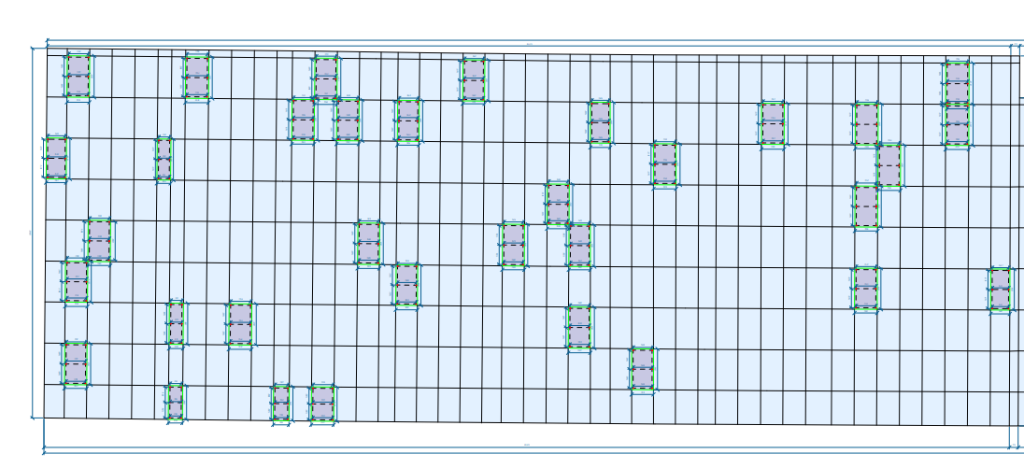

3D Facade Scanning: Digital Accuracy for Modern Projects

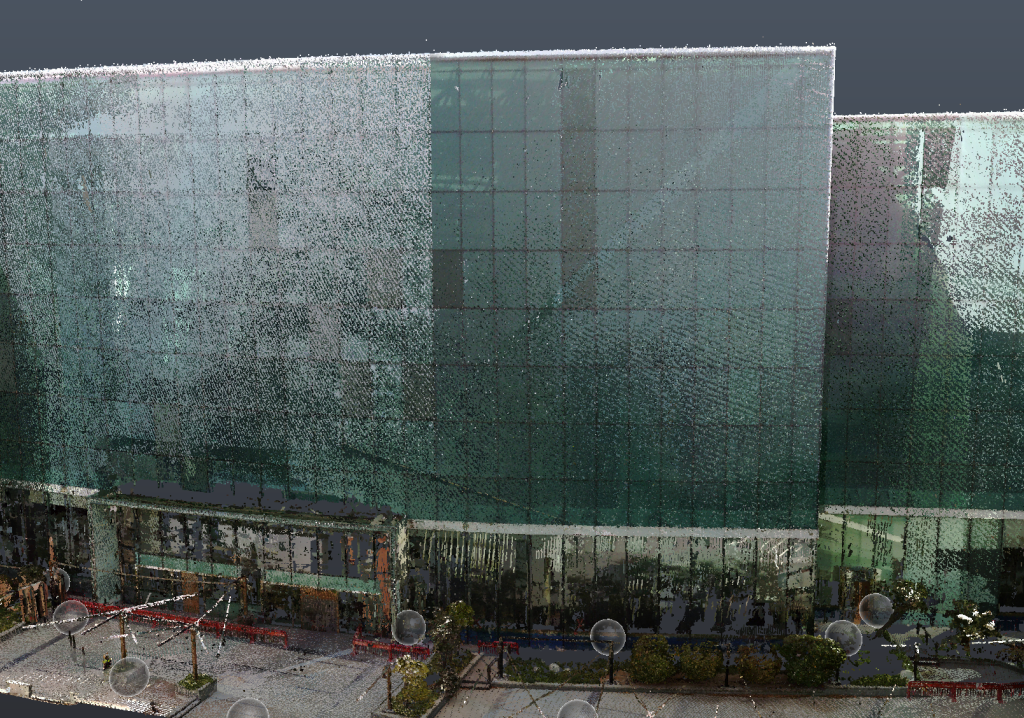

3D facade scanning provides a complete digital record of a building’s envelope. Using millions of measurement points, the process generates a high-resolution model that reveals the true geometry of the facade. This enables architects, engineers, and contractors to detect deformations, plan replacement works, and reduce installation risks.

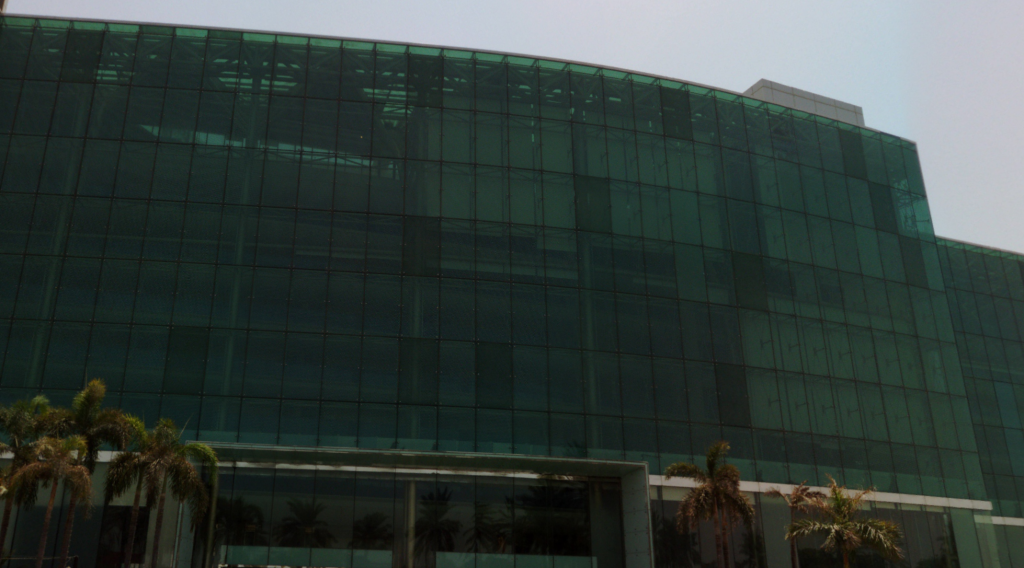

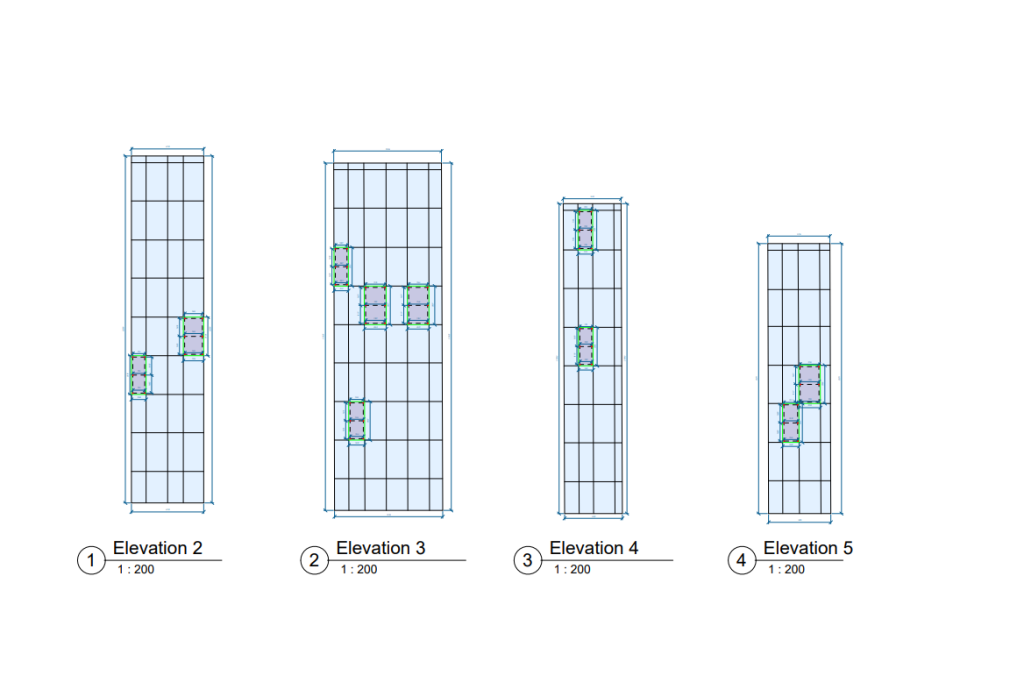

Our Facade Surveying Scanning Projects
Laser Scanning of Facades Combined with Geodetic Surveying
While laser scanning provides a detailed cloud of points, combining it with a geodetic survey of the facade using a total station (tachymeter) ensures the highest level of dimensional accuracy. A tachymeter allows for exact georeferencing of the scan data, ensuring that measurements of facade panels align perfectly with design requirements. The hybrid approach guarantees that the measurement of facade panels is both comprehensive and precise.
Applications of Facade Surveying
ScanM2 specializes in facade measurement by combining two technologies: high-resolution laser scanning and geodetic tachymeter surveying. This dual method provides both the detailed geometry of 3D facade scanning and the exact control points from classical geodesy. As a result, clients receive accurate data necessary for:
- Replacement of facade glazing units
- Facade recladding / re-cladding of facade projects
- Documentation of existing building conditions
- Quality control in construction and refurbishment works
- Global Presence
If you are facing a similar challenge with glass facade replacement or re-cladding, our team is ready to assist. We operate internationally with offices in the United Arab Emirates, the European Union, the United States, and the United Kingdom.
Accurate measurement is the foundation of successful facade replacement. With the right combination of technologies, you ensure safety, efficiency, and a seamless architectural result.
FAQ – Frequently Asked Questions about Facade Surveying and Recladding
What is the difference between traditional geodetic facade surveying and 3D facade laser scanning?
Traditional surveying relies on selected points measured with a total station, while 3D facade scanning captures millions of points to create a complete digital model. Combining both ensures maximum precision.
Why is a facade survey essential before facade glazing replacement?
An accurate facade survey ensures that new glazing panels fit perfectly, avoiding costly delays and guaranteeing safety and durability of the curtain wall.
What problems may occur without precise facade panel measurement?
Without exact facade panel measurements, errors may lead to leaks, installation issues, or even loss of warranty for facade cladding and glazing systems.
Can facade laser scanning detect deformations and structural shifts?
Yes, laser scanning of facades identifies even the smallest distortions, settlement, or irregularities that are not visible to the naked eye.
What does a complete facade modernization (recladding) project include?
Facade modernization (recladding) involves more than replacing glass or cladding. It includes facade inspection, adjustment of fixing systems, improvement of insulation, and full as-built documentation.
Is it possible to measure high-rise building facades without scaffolding?
Yes – using 3D scanning and geodetic surveying allows safe and precise measurements of tall buildings without scaffolding or physical access to each facade panel.
