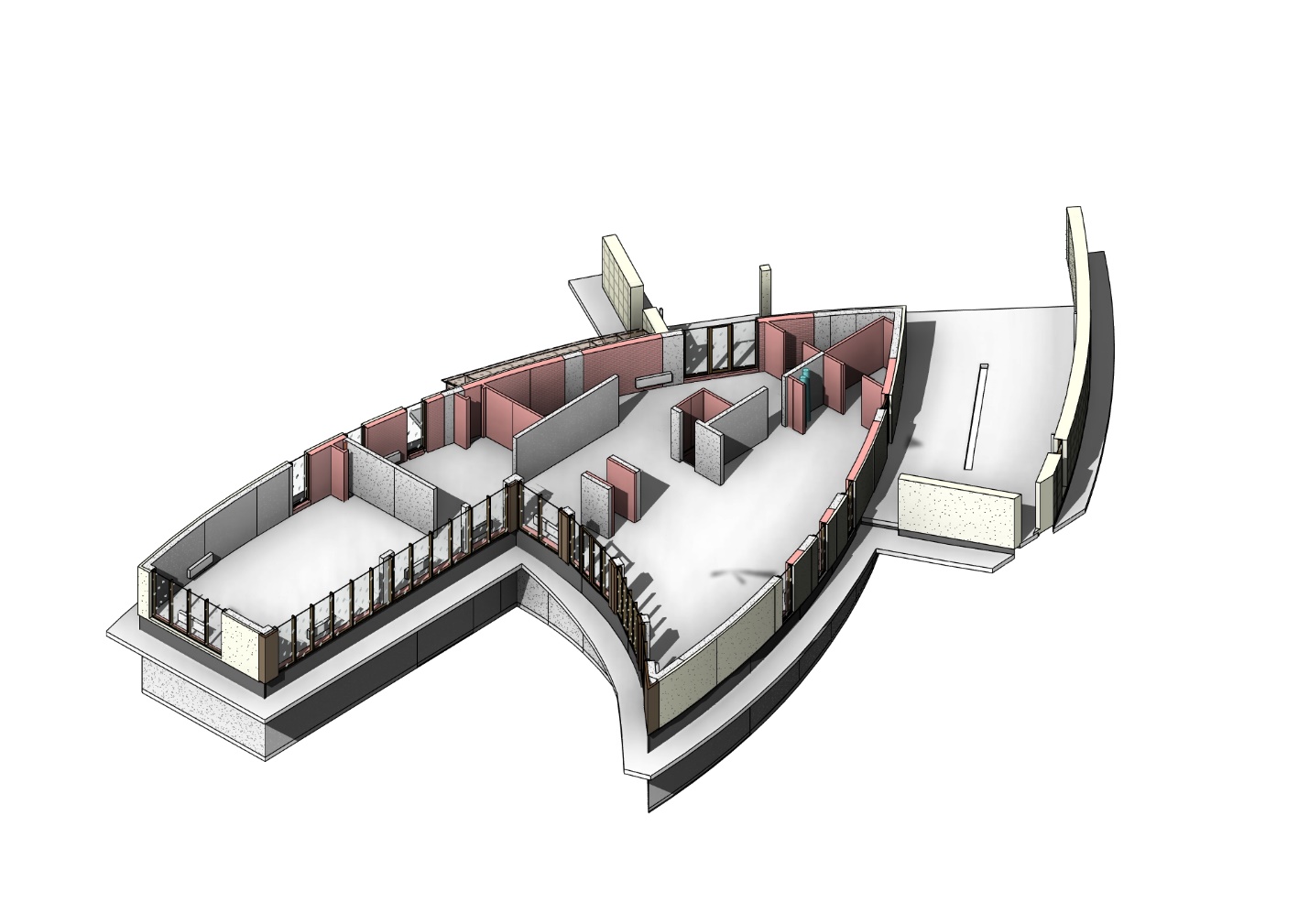

BIM Modeling for Office buildings

Office buildings are constantly changing. Interior layouts are reconfigured for new tenants, workplaces are modernized, façades are renovated, and building systems are upgraded throughout the property lifecycle. Accurate BIM models help architects, engineers, owners, and contractors understand existing conditions and coordinate these changes within a structured digital environment.

ScanM2 provides BIM Modeling Services for Office Buildings for renovation, tenant improvements, redevelopment, facility documentation, and multidisciplinary coordination. We create models based on laser scan data, point clouds, existing drawings, and other available project information, with the modeling scope defined according to the intended use of the BIM model.

BIM Models for Existing Office Buildings

Existing office properties can be difficult to document accurately because the current building may differ significantly from its original design. Previous renovations can change partitions, doors, ceilings, service routes, common areas, and other building elements without those modifications being consistently reflected in archived documentation.

A BIM model consolidates the required existing-condition information into a coordinated 3D environment. Instead of working with disconnected plans and individual measurements, project teams can use a structured model to understand spatial relationships between architectural, structural, and building-service elements.

Where current geometric information is required, our 3D Laser Scanning Services for Office Buildings can provide the measured source data needed for model development.

What We Model in Office Buildings

The BIM scope is determined by the project requirements. An office renovation model does not necessarily need every visible object to be reproduced. Instead, we identify the building elements that affect design, coordination, documentation, or construction.

Architectural Model

• Exterior and interior walls
• Doors and windows
• Floor and ceiling geometry
• Office partitions
• Corridors, lobbies, and common areas
• Stairs and vertical circulation
• Façades and exterior architectural elements
• Roof geometry

Structural Model

Where required by the project, visible structural elements such as columns, beams, slabs, structural walls, and openings can be incorporated into the model to support renovation planning and coordination with proposed work.

MEP Model

Visible and sufficiently documented HVAC, plumbing, electrical, and other building-service elements can be modeled when they are included in the agreed scope. This can be particularly important when office layouts, ceiling systems, technical areas, or building services are being redesigned.

BIM Modeling for Office Renovation and Modernization

Renovating an office building means integrating new design solutions into an existing physical environment. Existing columns, façade openings, floor levels, cores, ceiling zones, and building systems can constrain the proposed design and influence construction decisions.

An existing-condition BIM model gives the design team a digital base for planning these modifications. Proposed layouts can be developed with a clearer understanding of the geometry that is already present rather than relying only on legacy drawings.

For projects beginning with reality-capture data, our Scan to BIM Services for Office Buildings provide a complete workflow from measured point cloud data to a structured BIM model.

BIM for Tenant Improvements and Office Fit-Out

Tenant improvement projects rarely require the same modeling scope as a complete building redevelopment. In many cases, the BIM model can focus on an individual office floor or tenant area together with the surrounding elements that affect the new design.

The model can provide a coordinated base for new partitions, meeting rooms, workspaces, circulation routes, ceilings, finishes, and building-service modifications. Core areas and adjacent spaces can also be included where they influence the fit-out.

This targeted approach keeps the model aligned with actual project requirements instead of adding unnecessary geometry that will not be used during design or construction.

BIM Modeling for Multi-Story Office Buildings

Multi-story office properties introduce coordination requirements that are less significant in smaller spaces. Floor levels, structural grids, vertical circulation, shafts, façade geometry, and building systems may need to be understood across several levels simultaneously.

A coordinated BIM environment helps maintain spatial relationships between floors and allows project teams to evaluate how changes in one part of the building may affect adjacent levels or shared building infrastructure.

Our Office Building BIM Modeling Workflow

1. Define the Modeling Scope

We determine which areas and disciplines need to be modeled, the required level of development, source data, coordinate requirements, final formats, and how the model will be used.

2. Review Source Data

The modeling team reviews available point clouds, laser scan data, drawings, plans, and other project documentation before model production begins.

If point cloud data has already been captured, our Point Cloud Processing Services for Office Buildings can prepare and organize the dataset for subsequent modeling.

3. Create the BIM Model

Required architectural, structural, and MEP elements are modeled according to the agreed project scope and available source information.

4. Coordinate Building Elements

Relationships between floors, façades, structural components, interior spaces, and required building systems are reviewed within the coordinated model environment.

5. Quality Control

Model geometry is checked against the available source data and agreed modeling requirements before final delivery.

6. Model Delivery

The completed BIM model and associated documentation are prepared in the formats established for the project.

Choosing the Appropriate LOD for an Office BIM Model

The appropriate level of development depends on the decisions the model needs to support. Early planning, detailed renovation design, multidisciplinary coordination, and documentation do not necessarily require the same amount of model information.

For example, a model created to understand overall floor layouts and major building geometry can be less detailed than one intended to coordinate complex ceiling zones and building services during an office fit-out.

The required detail can also vary within the same building. Areas affected by renovation may need more information than spaces that remain unchanged. Defining these requirements before production helps avoid unnecessary modeling while keeping the model useful for the project team.

BIM Model or As-Built Drawings?

Not every office project requires a complete BIM model. When the primary requirement is a set of measured floor plans, elevations, or sections, conventional CAD documentation may provide everything the project team needs.

BIM becomes more valuable when the project requires coordinated 3D geometry, relationships between multiple building systems, several disciplines working from the same digital environment, or continued model development during design.

For projects focused primarily on measured 2D documentation, our As-Built Drawings Services for Office Buildings provide an alternative workflow based on the required project outputs.

Applications of BIM Modeling for Office Buildings

• Office renovation and modernization
• Tenant improvement and fit-out
• Workplace reconfiguration
• Architectural redesign
• Façade renovation
• Structural coordination
• MEP coordination
• Building extensions and redevelopment
• Existing-condition documentation
• Facility documentation and future planning

Office Building BIM Deliverables

Depending on the agreed scope, deliverables may include:

• Existing-condition BIM model
• Architectural BIM model
• Structural BIM model where required
• MEP model where included in scope
• Revit files
• IFC files where required
• Plans, elevations, and sections generated from the model
• Other agreed BIM and CAD formats

Why Choose ScanM2 for Office Building BIM Modeling

A BIM model should contain the information needed to solve a specific project problem rather than simply maximize geometric detail. For existing office buildings, this requires understanding how the model will be used during renovation, fit-out, coordination, or documentation.

ScanM2 combines reality capture, point cloud processing, CAD documentation, and BIM modeling within a coordinated workflow. This allows us to develop office building models from measured existing conditions and adapt the modeling scope to the requirements of architects, engineers, contractors, and property teams.
